H100 Cable Trays and Accessories
Technical data
Each row is a separate product. Use the basket icon next to the order code to add it to your quote list.

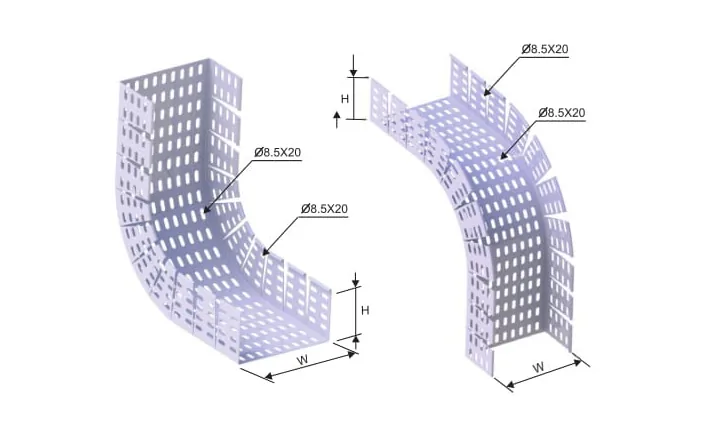

| h:100 INSIDE AND OUTSIDE VERTICAL BEND | ||||
|---|---|---|---|---|
| ORDER CODE | W / mm. | H / mm. | WEIGHT kg/m | Add to quote list |
| ORY-100İD100 | 100 | 100 | 1.702 | |
| ORY-150İD100 | 150 | 100 | 2.179 | |
| ORY-200İD100 | 200 | 100 | 2.461 | |
| ORY-2501D100 | 250 | 100 | 2.806 | |
| ORY-300İD100 | 300 | 100 | 3.140 | |
| ORY-400İD100 | 400 | 100 | 5.629 | |
| ORY-500İD100 | 500 | 100 | 6.699 | |
| ORY-600İD100 | 600 | 100 | 7.768 | |
